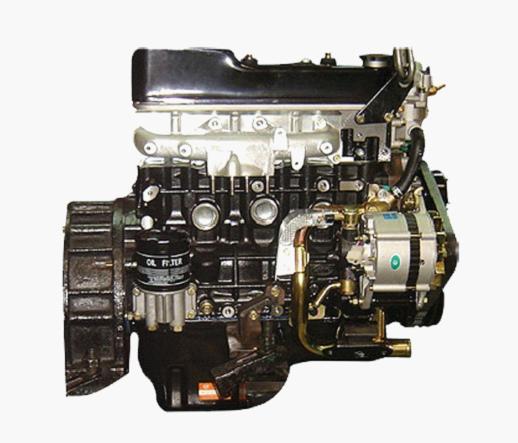

The 4DA1 engine
发布时间：2012-12-24 15:55:01
The only their own high quality engine
Main characteristics:
With direct injection combustion system, oil consumption, good start performance, strong power;
Bosch Fuel System by Germany P series injection machine VE pump quality components, stable idle speed, low noise, euro " II " standard;
Alternator, starter and other major accessories imported or domestic famous brand, the main friction pair adopts special auxiliary process, reliability, durability;
The whole structure is compact, the division of paint, beautiful appearance;
High quality after sale service and adequate supply of spare parts, complete for the user to solve any menace from the "rear".
| Engine technical parameters | |
| Model | Jac 4DA1 |
| Cylinder number diameter * -- act（mm） | 4——93*102 |
| Form | Direct injection |
| Total displacement（L） | 2.771 |
| Compression ratio | 18.2:1 |
| Rated power, rated speed（KW/r/min） | 39/2500 |
| Maximum torque / speed（N.m/r/min） | ≥175/1800-2000 |
| Full load minimum fuel consumption rate (g/kw.h) | ≤230 |
| Oil consumption rate（g/kw.h） | ≤1.68 |
| Minimum no-load steady speed（r/min） | 750±50 |
| Full load and exhaust smoke | ≤3.0 |
| Emission level | 欧Ⅱ |
| Exhaust temperature℃ | ≤700 |
| Net weight（KG） | ≤230 |
| Length * width * height (mm) | 734*640*682 |
