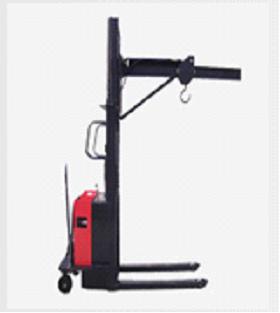

Electric lifting vehicle type TAD.
发布时间：2012-12-24 11:06:47
Semi electric for hand or electric type, is our stacking series the most affordable car, including hand or electric car, hand or electric crane truck, hand or electric tank car. Suitable for short distance transportation, the maximum rise up to 3500mm.
| Name of a commodity | Hand / electric crane truck | |
| Model | TAO3D-16 | TAO3D-24 |
| Load | 300KG | 300KG |
| Hook the maximum height from ground | 1760MM | 2560MM |
| Boom length | 1600MM | 1600MM |
| Telescopic scope | 600MM | 600MM |
| Fork length | 750MM | 750MM |
| Door frame height | 2808MM | 1709MM |
| Overall width | 840MM | 840MM |
| Vehicle length | 2300MM | 2300MM |
| Hoisting motor | 1.5KW | 1.5KW |
| Storage battery | 12V/120AH | 12V/120AH |
| Charger | 12V/15A | 12V/16A |
